Description

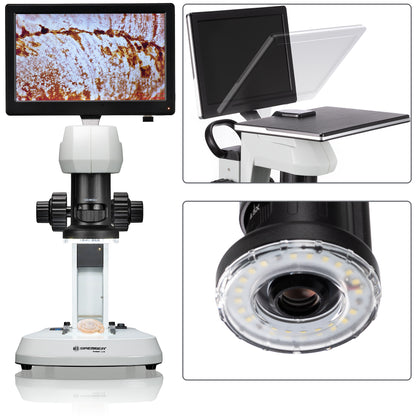

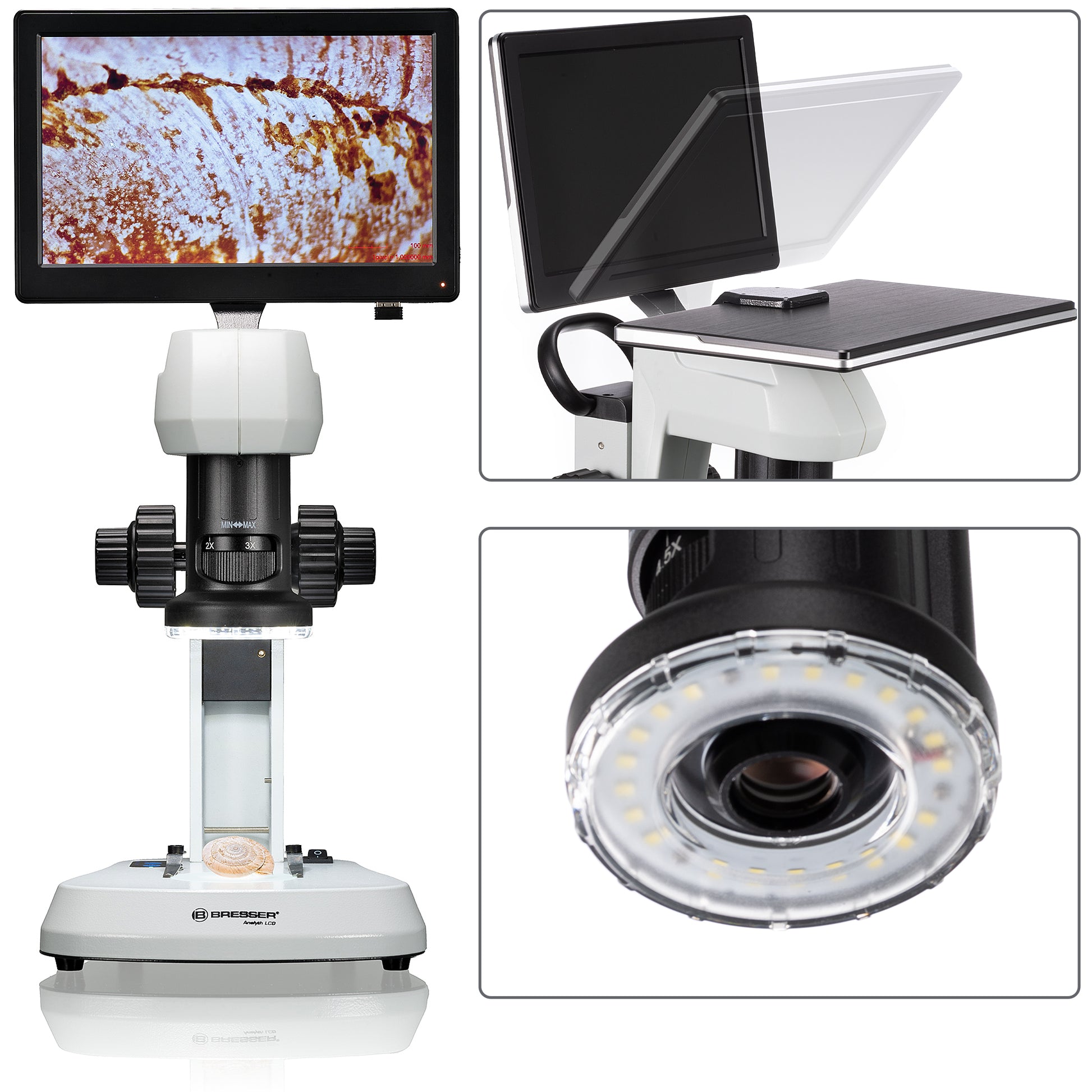

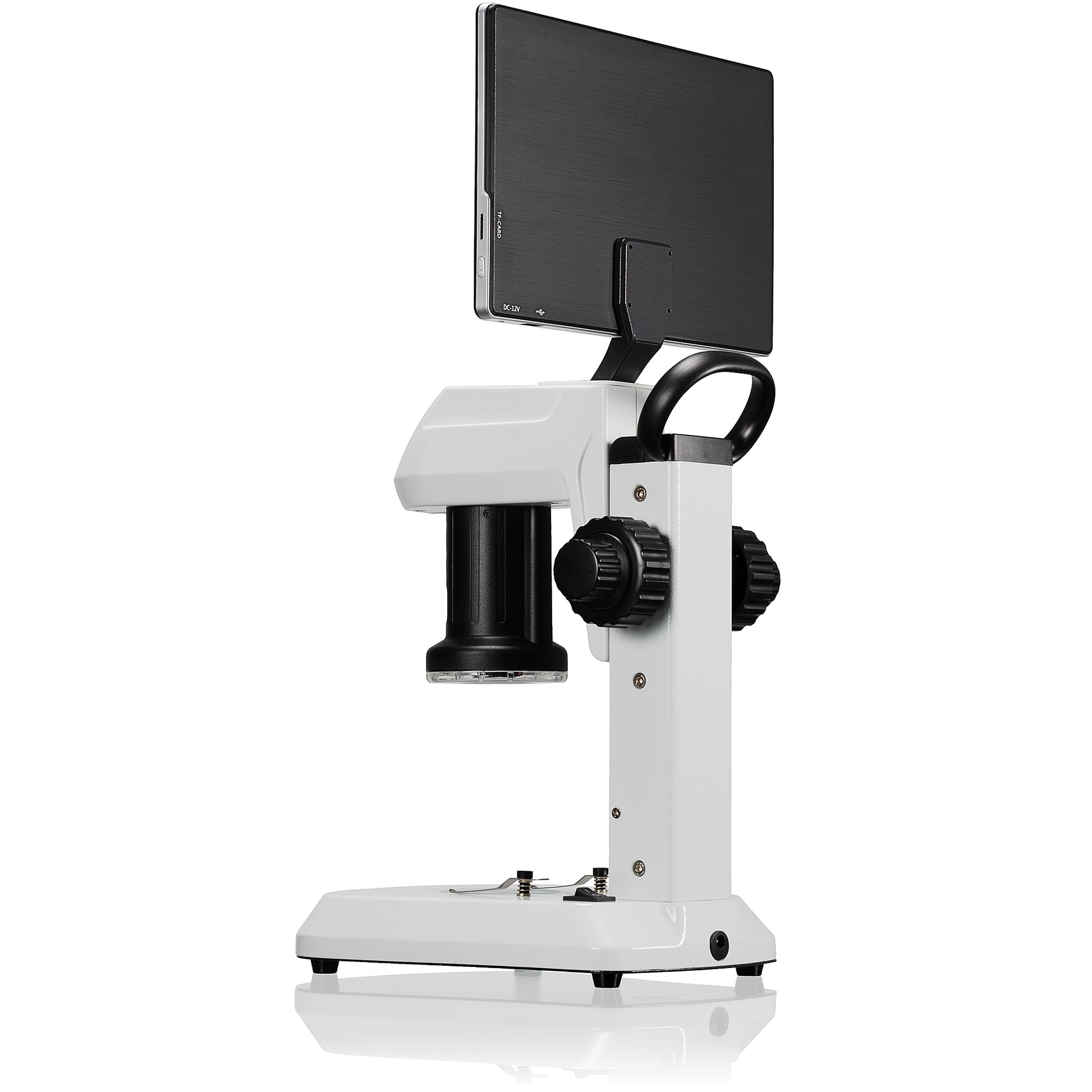

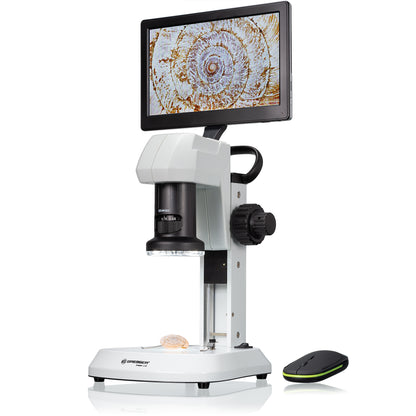

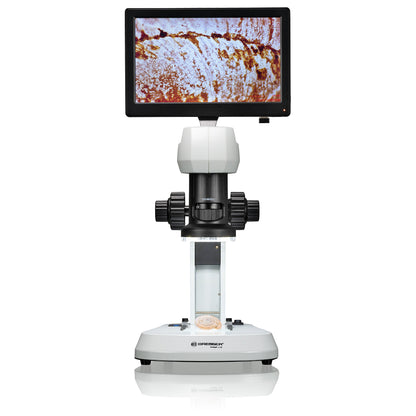

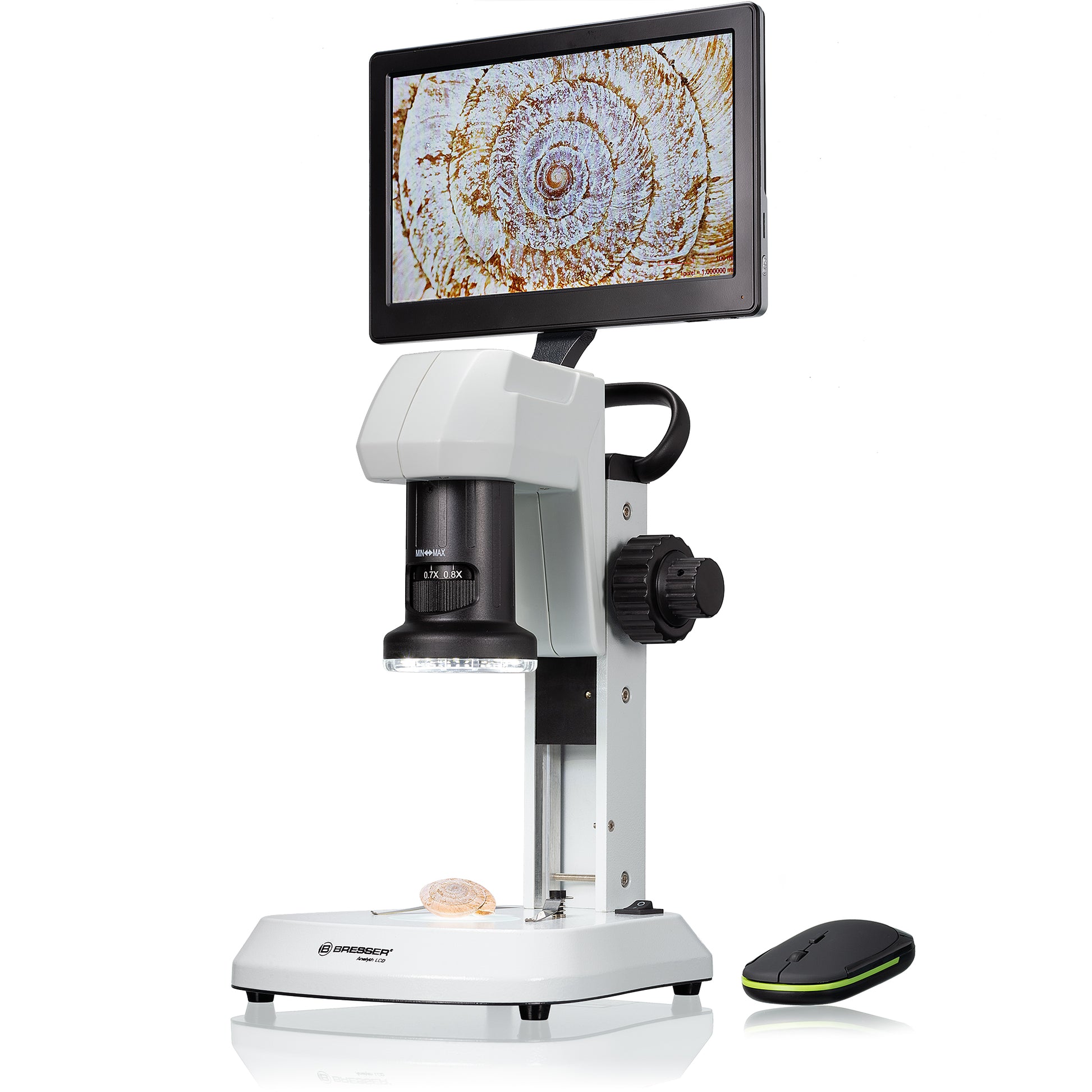

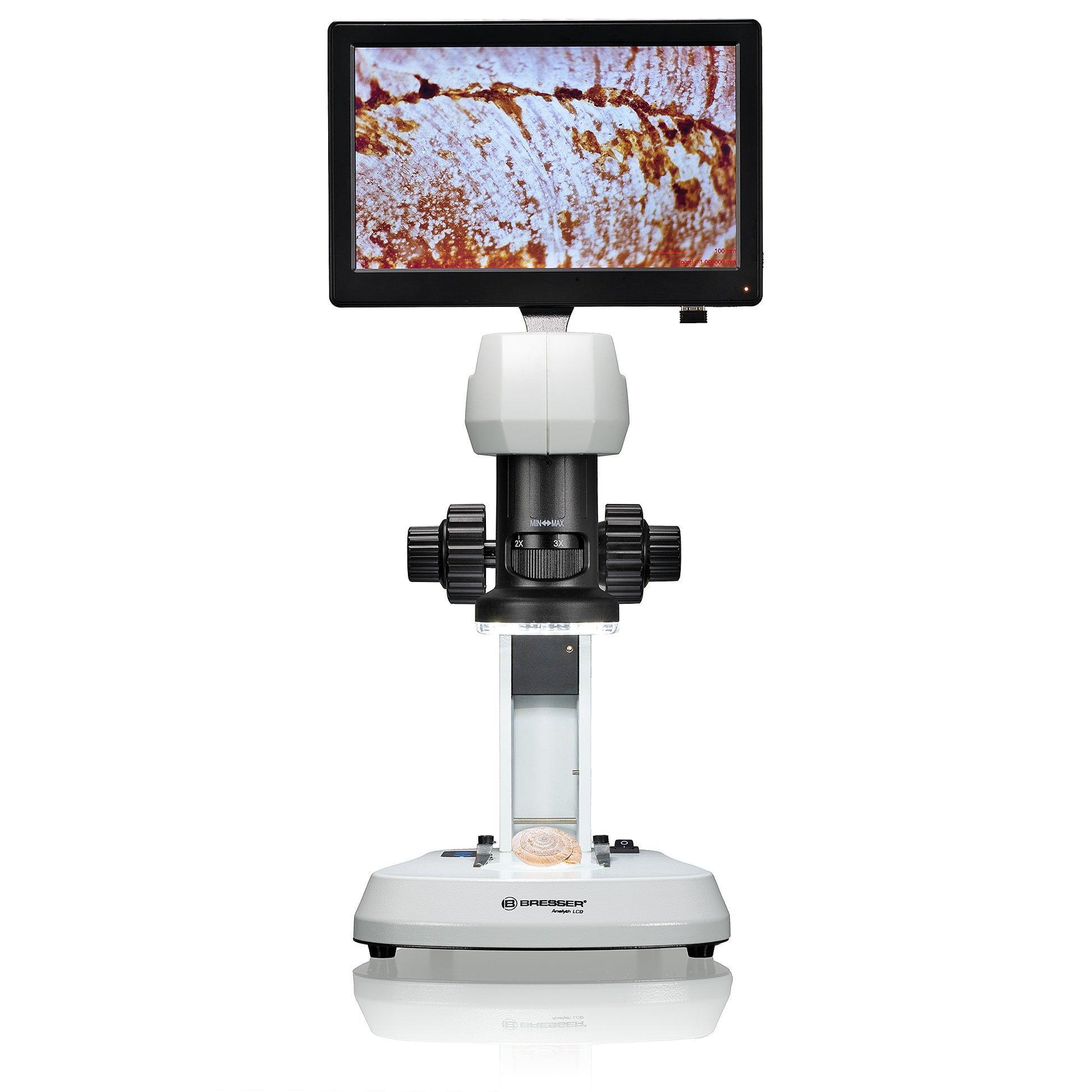

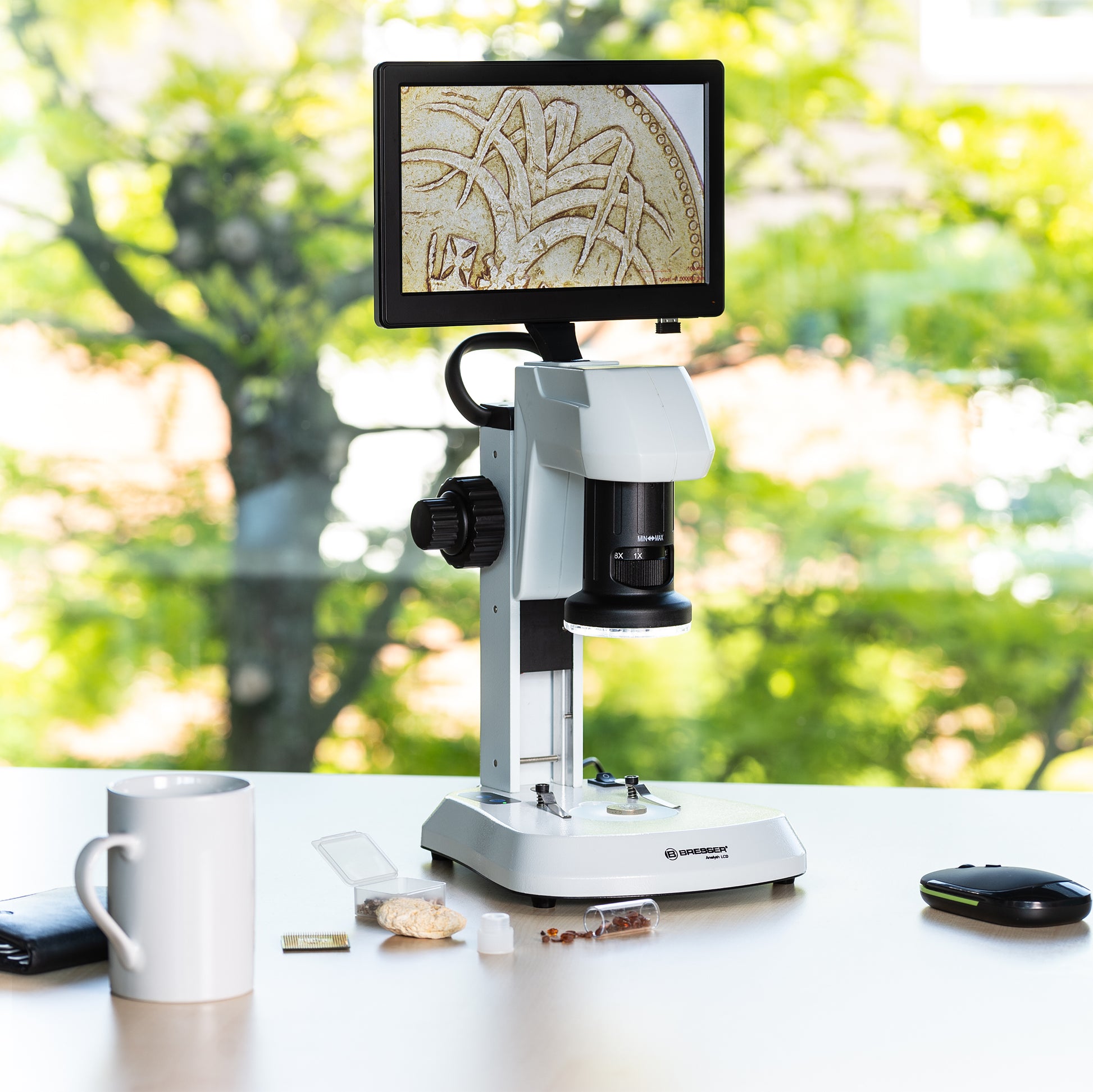

The BRESSER Analyth LCD microscope is a professional digital zoom microscope with a built-in LCD screen and ring LED illumination, designed for observations in reflected and transmitted light without the need for a computer connection. The device is ideal for quality control of small structures, research of components, raw materials, insects, plants and minerals, as well as for precise measurements in industrial and scientific environments. Key features of the model include a stepless zoom from 0.7x to 4.5x, a 5-megapixel camera based on the Sony IMX335 sensor and a large built-in LCD display with a diagonal of 22.5 cm. The microscope is controlled via the on-screen menu using a USB mouse, and all photos and videos are stored on a MicroSD card. The aluminum and plastic housing ensures the reliability and durability of the device.
Design features:
Stepless zoom lens - The microscope is equipped with a zoom lens with a smooth adjustment of magnification in the range from 0.7x to 4.5x without fixed steps. This allows you to instantly adjust the zoom to a specific task without changing lenses. The user gets complete flexibility when working with objects of different sizes.
Built-in LCD screen — the device has an integrated liquid crystal display (LCD — Liquid Crystal Display) with a diagonal of 22.5 cm and a resolution of 1024×600 pixels. Thanks to the large screen, the image can be viewed directly on the microscope without connecting to an external monitor or computer. This greatly simplifies the workflow and increases the mobility of the device.
Sony IMX335 CMOS camera — the microscope has a built-in 5-megapixel camera based on the Sony IMX335 sensor (CMOS — Complementary Metal-Oxide-Semiconductor) with a sensor size of 1/2.8" and a pixel size of 2.0 μm. The sensor provides a clear, detailed image even at maximum magnification. The high quality of the Sony matrix guarantees accurate color reproduction and minimal noise.
Effective on-screen magnification - The combination of optical zoom and built-in screen size provides effective image magnification from ~8.2x to ~52.7x. This allows you to view fine details of objects in an eye-friendly format. The wide magnification range covers a wide range of research and production tasks.
Dual illumination – ring incident and transmitted light – the microscope is equipped with two independent illumination systems: a ring incident light with 21 LEDs and a transmitted light from below. The ring illumination evenly illuminates the surface of opaque objects, while the transmitted light allows you to examine transparent and translucent samples. Both systems are independently adjustable in 5 brightness levels, which provides optimal illumination for each type of object.
Five levels of backlight brightness adjustment — the user can smoothly adjust the intensity of both incident and transmitted light separately in five steps. This is important to avoid overexposure or underexposure under different materials and observation conditions. Precise brightness control increases image contrast and the quality of photo and...
