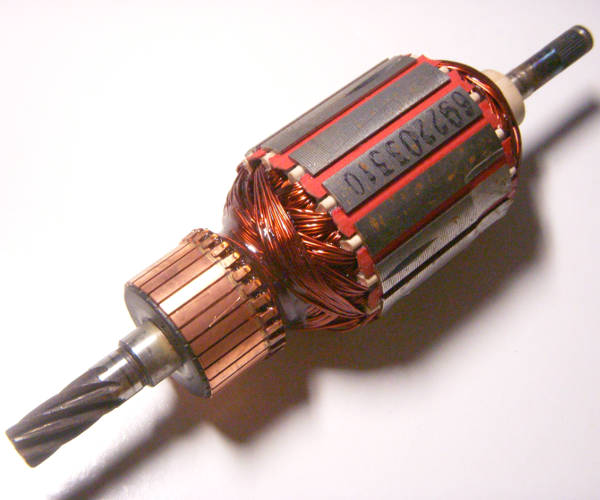

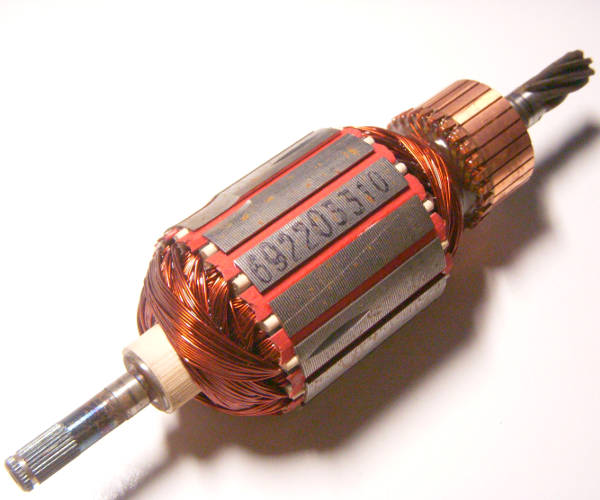

Anchor of the engine of the manual electric scythe Izhmash, Elprom, Taiga, Kedr KG-2200

Name: Anchor of the engine of the manual electric scythe Izhmash, Elprom, Taiga, Kedr KG-2200
Brand: Dostavka
SKU: 26380
Price: 1341.99 UAH
Availability: InStock
Rating: 3 (49 reviews)

Anchor of the engine of the manual electric scythe Izhmash, Elprom, Taiga, Kedr KG-2200

SKU: 26380

₴1,341.99 UAH

Sale It's over

Shipping costs are calculated when placing your order.

Parameters:

diameter_1 : 47

diameter_2 : 30

diameter_3 : 10

diameter_4 : 8

diameter_5 : 10

length_1 : 171

length_2 : 112

length_3 : 41

teeth : 7

We deliver by regular mail with track number

Return policy

View all information

Description

Anchor of the electric motor of the garden trimmer, electric scythe Sterwins 1000/1200 BC-2, Expert Garden 1200 W (NL10105366), YT6922C (PR8402-692203), Taiga KG-2100, Intertool DT-2242, AL-KO BC 1200 E, MEGA BR 140, Izhmash Profi ITP-2100, Craft-Tec EKS-2200, CXGS-2200, ELPROM ETE-2000, START STE-2100, Eltos KG-2100/2200, Mega BR 140, Champion ET1004A, KEDR KG-2100/2200, Forest KG-2100.

The winding frame diameter is 47 mm,
Package length 41 mm,
7 teeth to the right.
Shaft length - 171 mm.
Collector - 30 mm.
Places for installing 8 and 10 mm bearings.
Between bearings 112 mm.

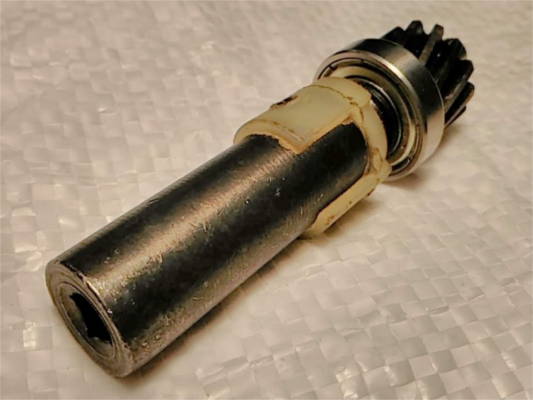

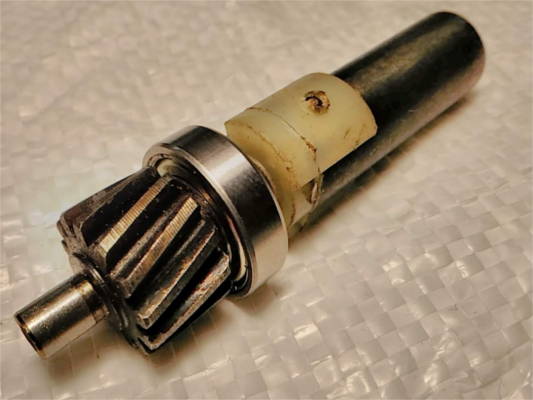

For reference: the size of the counter driven gear:
Shaft length 48 mm; 17 teeth.
The counter gear is sold separately or as part of an electric motor.
