JSWm 10 water pump thin impeller wheel 164GRJCR 10 Ø135*12*34 h3-8 (bushing h15 with key)

JSWm 10 water pump thin impeller wheel 164GRJCR 10 Ø135*12*34 h3-8 (bushing h15 with key)

SKU: 24695
₴326.27 UAH
₴326.27 UAH
Sale It's over
Shipping costs are calculated when placing your order.

diameter_1 : 135
diameter_2 : 34
diameter_3 : 12
height_1 : 37
height_2 : 15
height_3 : 7
height_4 : 3
height_5 : 9
View all information

Description

Thin impeller wheel XA03013A 164GRJCR 10 for water pumping unit JSWm 10MX, JSW 10M, Aquario, ALBA, Wender JET-150, Ultropump JET-10M, H.World JSW10M, Optima, (SJWm 10M), Pedrollo JSWm (10m) 2AX, 2CX 0.75 kW, JCRM15M, LEO XJWm/10HA3 (776227), AQUATICA 776225, Aquatika 776227, XJWm/10M (775323), Delfin, Dolphin F JSWm 10m, Sprut, Kenle JSW/10M, JS100, hydrophore 1500 W IBO JSW 15 0, Sprut JSP355A-A05/015

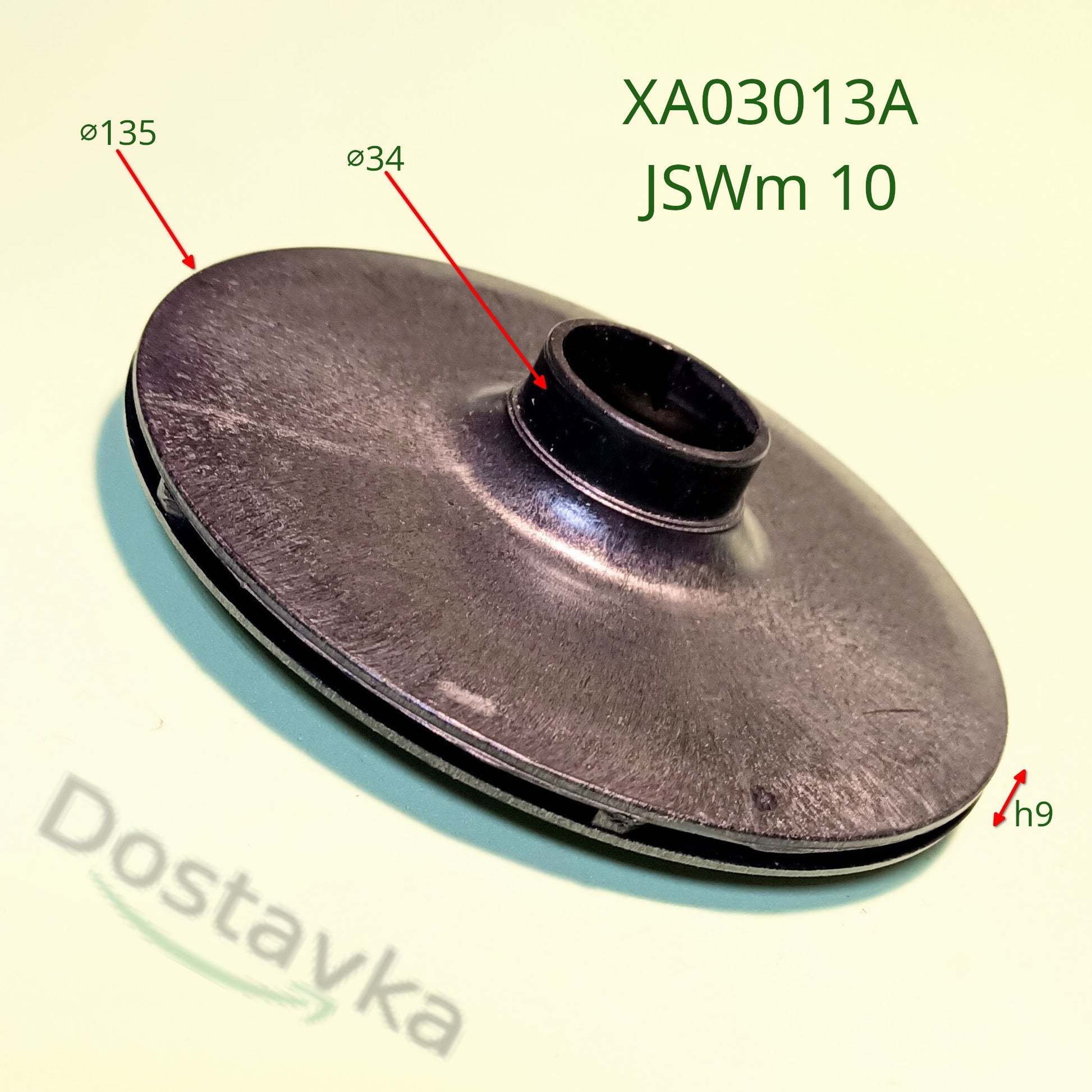

Outer size ∅134~135 mm
Put on shaft ∅12 mm (bronze bushing with cutout for key),
Suction branch pipe with outer diameter ∅33~34 mm,
Protrusion on the back side 9 mm,
Mounting height (depth) of bushing 15 mm,
Total height 37 mm,
Thickness at edges 7 mm,
Cavity between blades 3~4 mm
