Description

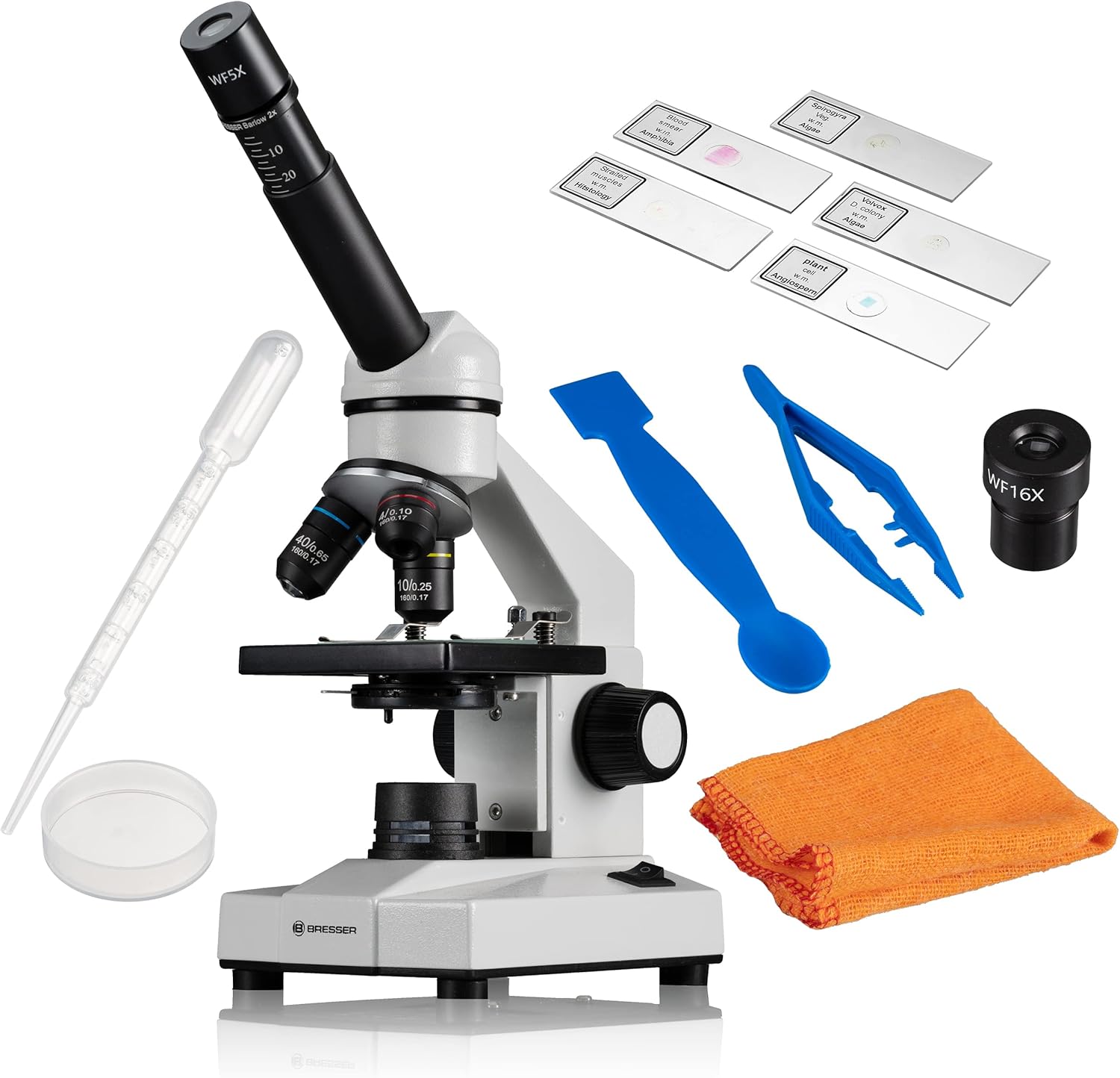

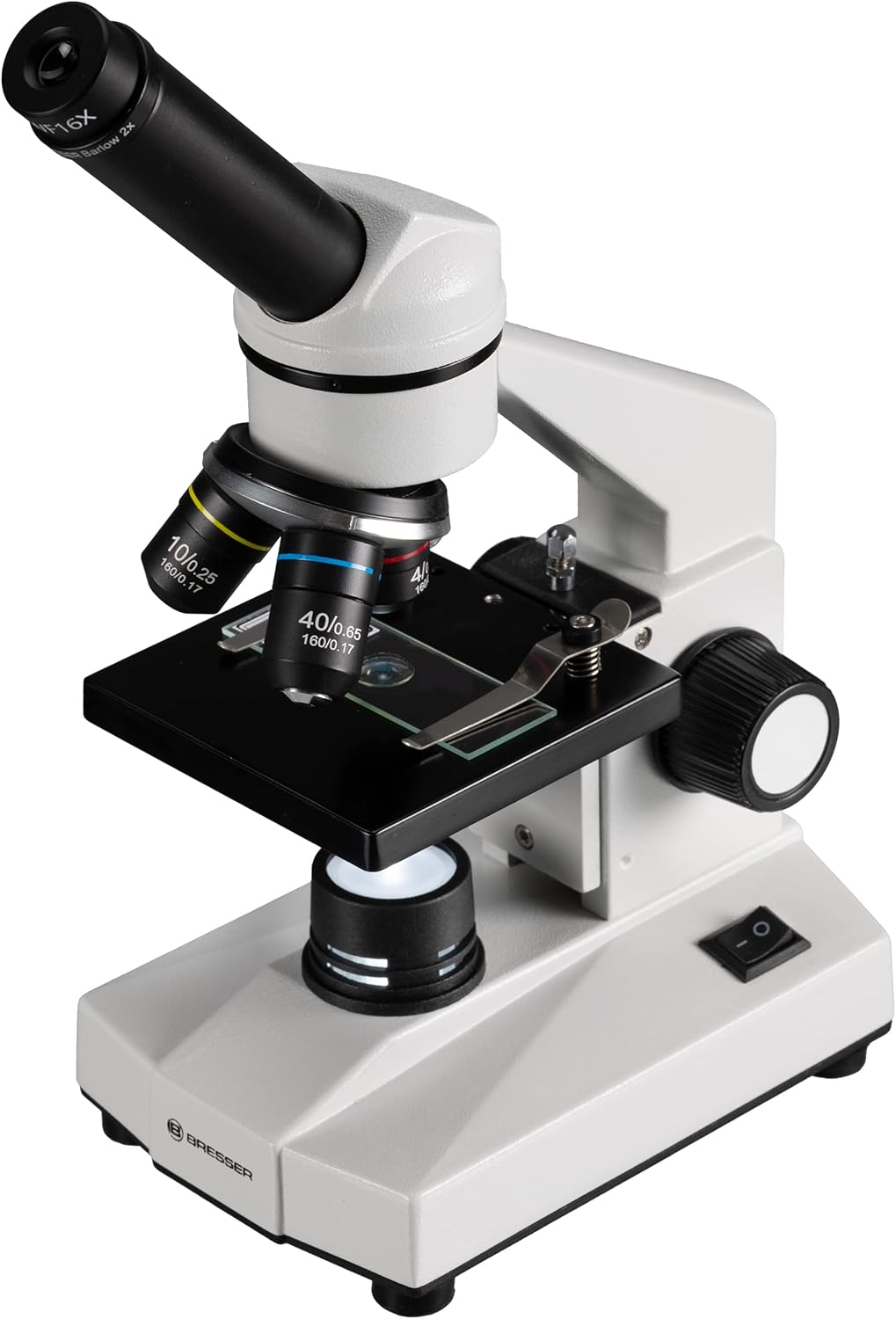

The Bresser Erudit DLX 20x-1280x microscope is a monocular biological microscope designed for teaching, studying biological preparations and studying the microworld in educational and home settings. The device provides four levels of magnification — from 40x to 1000x — allowing you to study both large biological structures and small cellular elements. Among the key features of the model, it is worth noting a mechanical stage with a vernier scale for precise movement of the preparation, an Abbe condenser with an adjustable diaphragm for optimal illumination control, as well as a coaxial focusing system with coarse and fine adjustment. The built-in rechargeable battery ensures autonomous operation without being tied to the network. The model is ideal for beginners and intermediate users who want a high-quality tool for practical research.
Design features:
Monocular optical head - the microscope is equipped with a single eyepiece, which makes it easy to use and convenient for beginners. The monocular design ensures compact dimensions of the device and reduces its overall cost without significant loss in image quality. This format is optimal for educational institutions and home use.
360° Rotatable Head — The microscope’s optical head rotates a full 360 degrees around its vertical axis. This allows you to adjust the eyepiece position to a comfortable viewing angle regardless of where the instrument is positioned or how the user sits. This feature is especially useful during long observations, reducing fatigue and strain in the neck and back.
Set of three objectives (4x, 10x, 40x) - the microscope is equipped with a turret with three objectives of different magnification. The 4x objective is used for a general examination of the preparation, the 10x for a more detailed study, and the 40x for working with cells. This set covers a wide range of scientific and educational tasks.

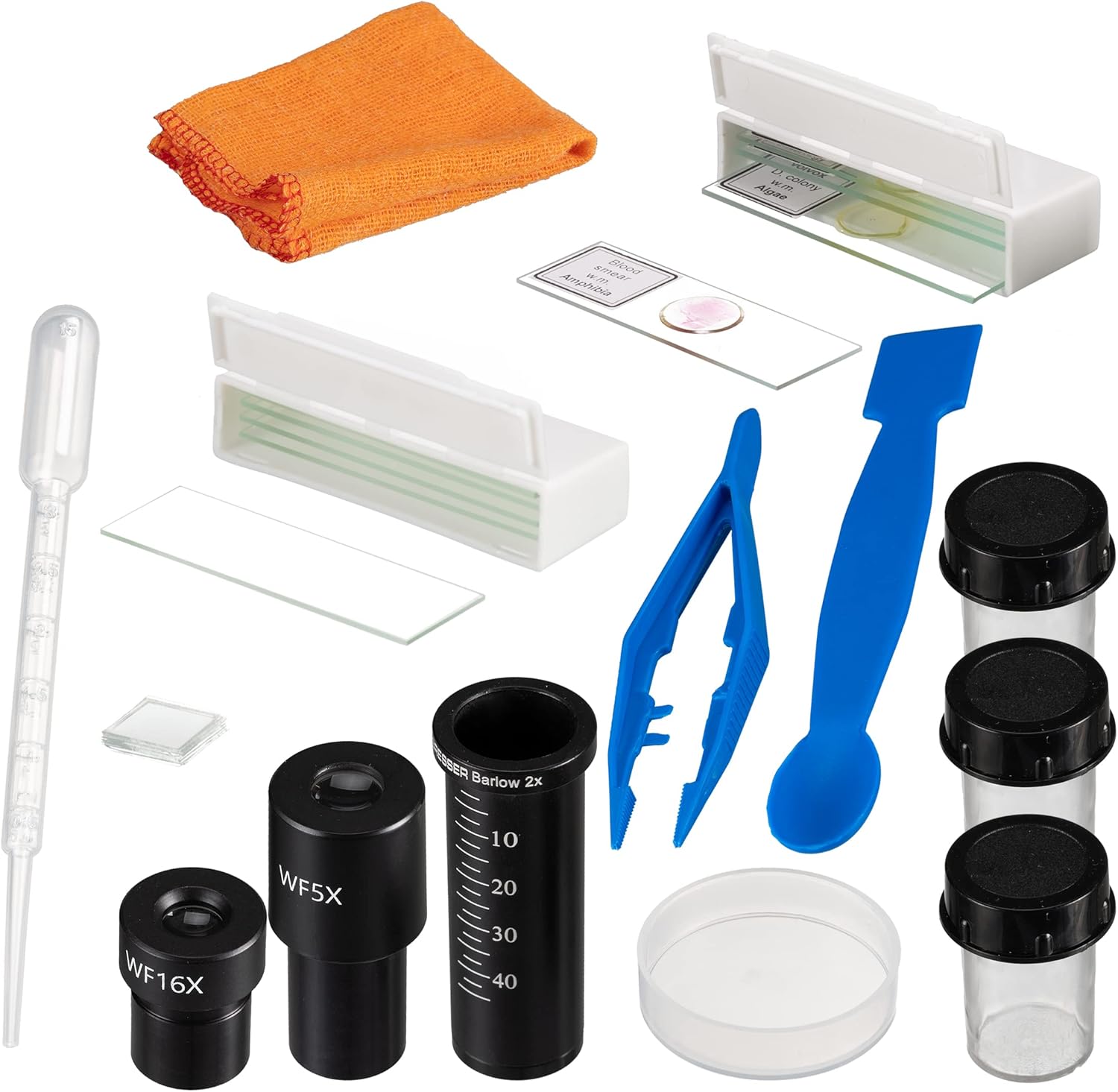

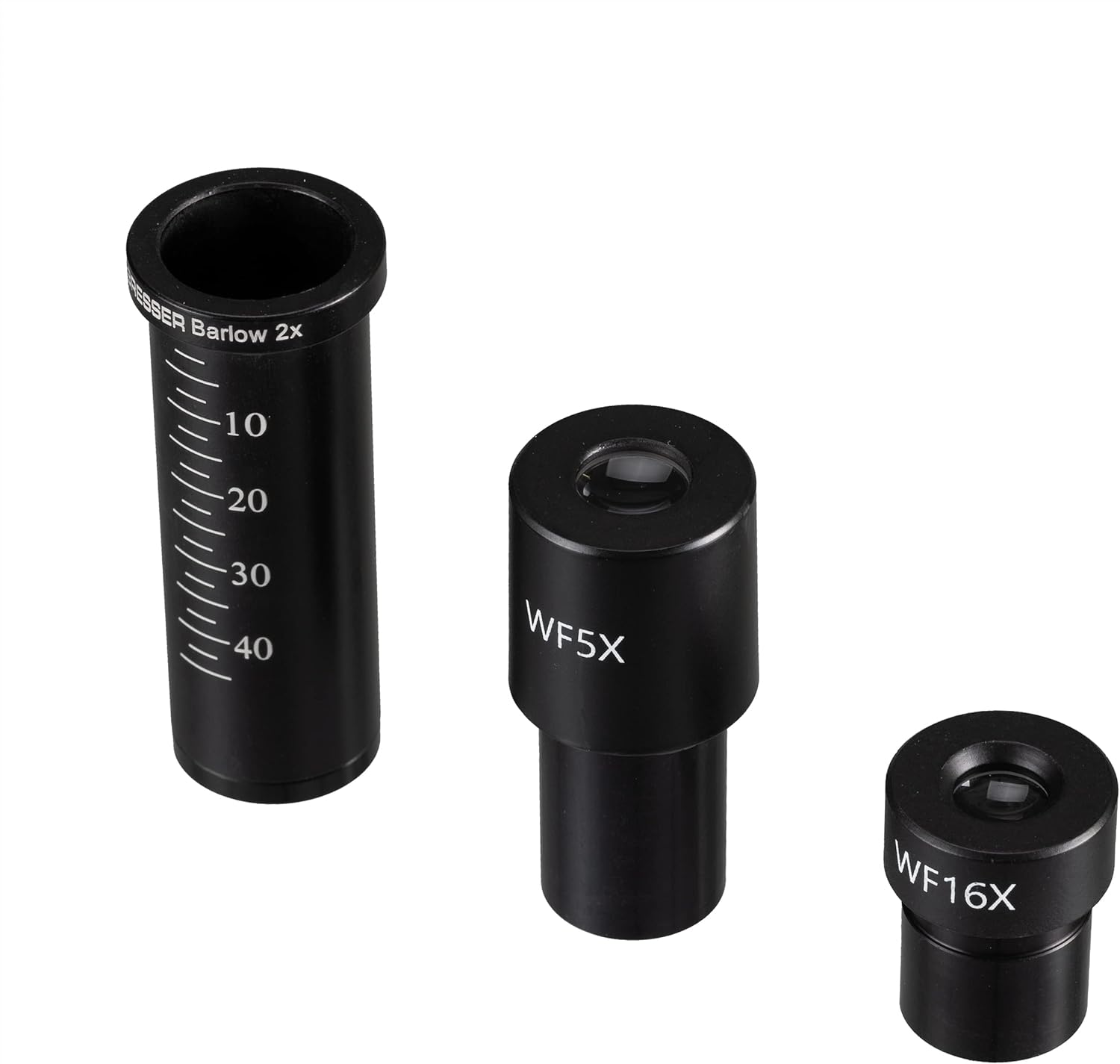

5x and 16x eyepieces — comes with two interchangeable eyepieces — 5x and 16x, which in combination with three lenses (4x, 10x, 40x) provide different magnification levels in the range from 20x to 1280x. Additionally, the 2x Barlow Zoom lens allows you to continuously enlarge the image between fixed values without changing the eyepiece manually.
Coaxial focusing system — the focusing mechanism is implemented according to the coaxial principle, where the coarse and fine adjustment knobs are located on the same axis. Coarse focusing is used to quickly bring the stage to the desired level, and fine focusing is used to precisely adjust the image sharpness. This approach is the standard for high-quality microscopes and significantly simplifies work with preparations at high magnifications.
Coarse focusing — the macrometric screw allows you to quickly move the stage in the vertical direction for approximate focusing. This reduces the time spent searching for the focal plane, especially when changing objectives. Coarse focusing is the first step when working with any new specimen.
