Description

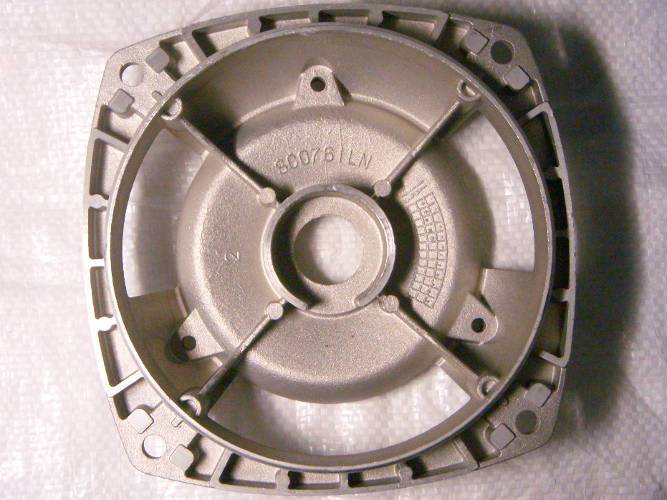

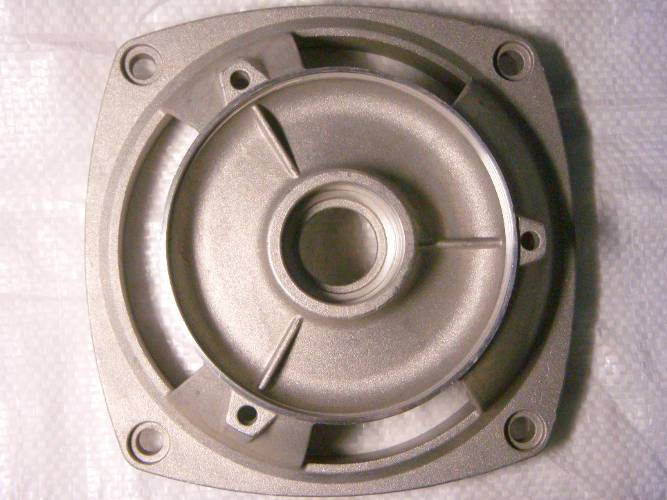

Original central legless support SCO76LN for the Italian pumping unit Pedrollo JSWm 15M, MX, 2AX, Pompa hydroforowa Optima JET 100,
The distance between the mounting holes diagonally is ~191 (between the centers) mm on the 4-bolt side,
Respectively 105 mm on the 3-bolt side,
Bearing seat 40 mm,
Support height 53 mm
Stator seat (lock) - 116 mm
Bearing seat diameter - 40 mm, (6203)
Suitable for models:
Pedrollo JSW 10-15 MX, Pedrollo JSWm 15MX, Pedrollo JSWm 2AX
