Description

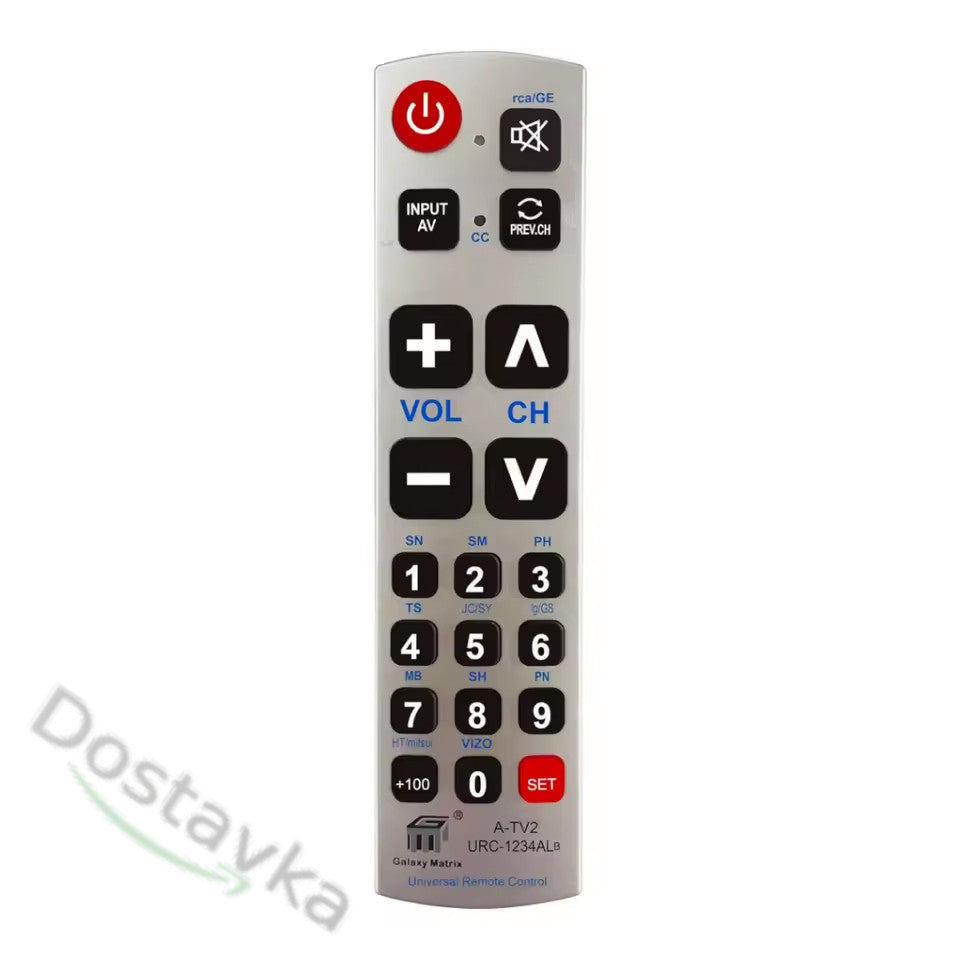

Remote Control for TV (Universal) | Obsolete Manufacturer Code: R-TV2

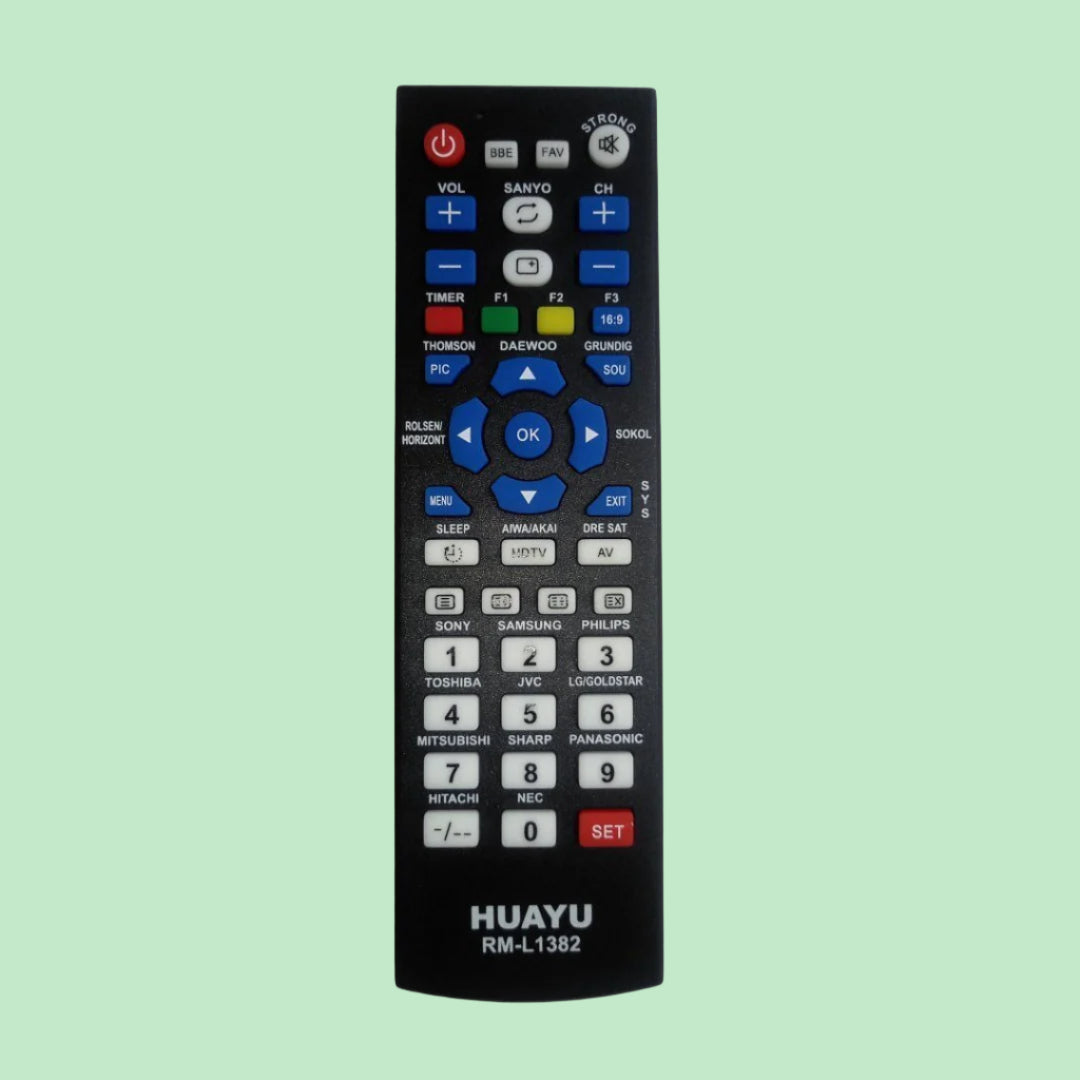

New marking: R-TV3/ RM-L1382
Station wagon
Distance: up to 8 meters
Number of batteries: 2
Power supply: AAA batteries
This remote control is designed to control the simplest functions of the TV if you need a remote control with large buttons
It cannot be taught from your native remote control, but it knows a large number of signals that are already registered in it for almost any modern TV .
Setting up the remote control:
1 Search for a model.
– Press the SET button and hold the button of the desired brand for 5 seconds. The indicator should blink.
– Release the buttons when the VOL signal appears on the TV.
– Check the basic functions of the remote control.
2 Manual input.
- Press SET and POWER simultaneously and hold until the indicator lights up.
- Enter three digits of the code on the remote control's numeric keypad. After entering the third digit, the indicator will go out - installation complete.
3 Manual code search.
- Press SET and POWER simultaneously and hold until the indicator lights up.
- Press VOL+ until the volume reaches maximum. Then press SET to save and exit.
4 Automatic code search.
– Hold down the SET key for about 5 seconds. The search will start when the indicator turns on.
- When VOL is displayed on the screen, release the key and check other function keys.
