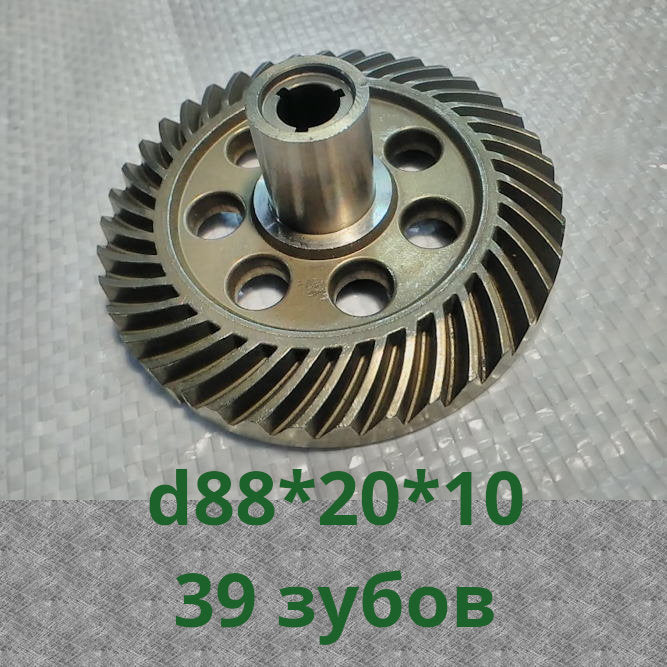

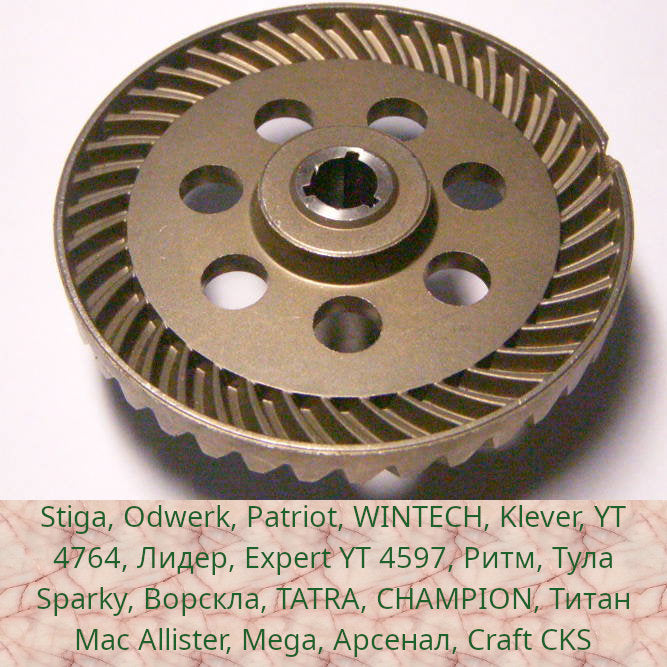

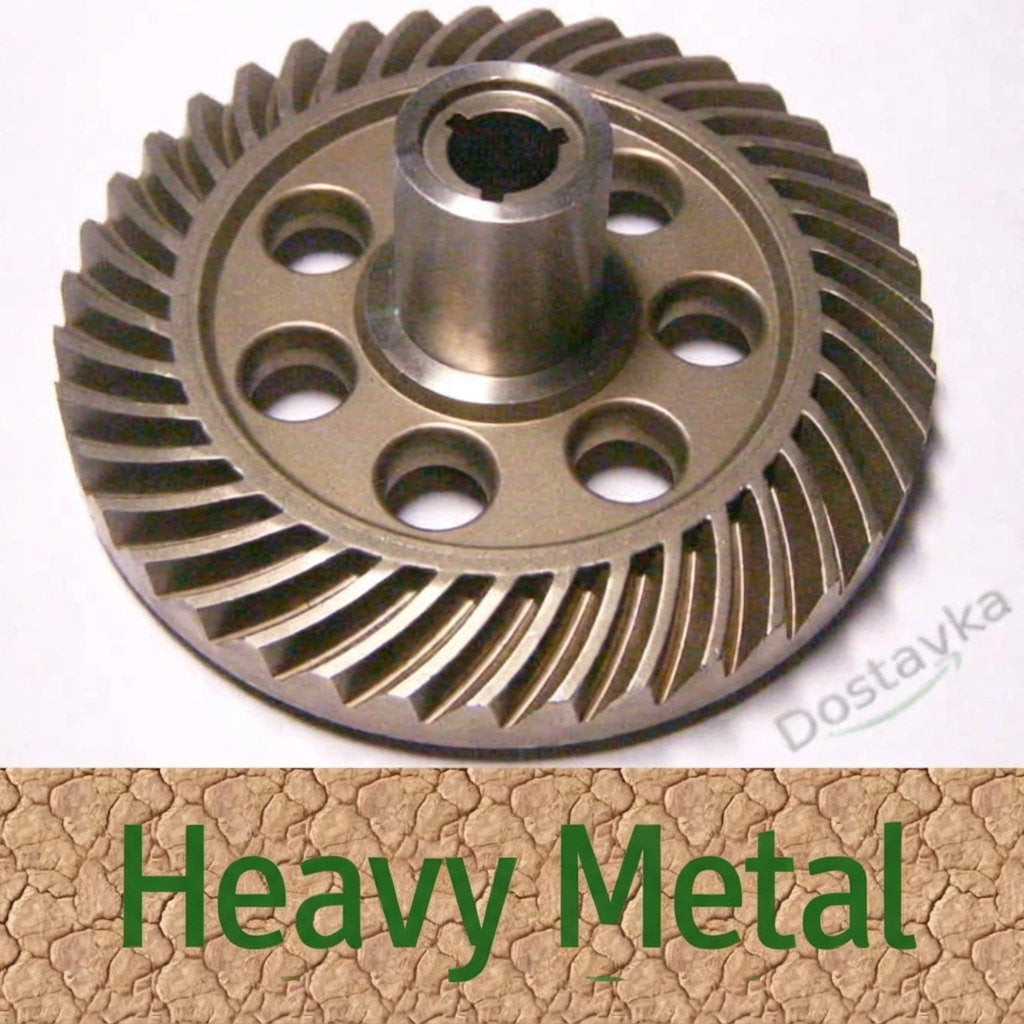

Klever Electric Chainsaw Gear YT 4764, Lider, Ritm, Titan (d88, 39T)

Driven gear for electric chainsaw with longitudinal motor

Key Specifications

• 39 teeth

• Outer diameter: 87~88 mm

• Total gear height: 36-37 mm

• Outer diameter of the tubular shaft (for spring): 20 mm

• Shaft fit (inner diameter): 10 mm

• Total height: 37 mm

• Material: engineering polymer / metal

Fits models

Stiga SEV 2416 Q, Odwerk BKE 4001, Patriot ES 2016 (220301510), WINTECH 2500, Klever 2.2 kW, 1800 W, 2200 W, (Epicentr CODE 10106170 YT 4764), Lider, Expert Gardian YT 4597, Ritm, Tula, Sparky, Vorskla, TATRA GARDEN MSE 240, CHAMPION 422-18", Titan PECP 2200, Mac Allister, TITAN PECP 2200, Mega HT 24, Arsenal PC 2200 (2.2 kW), Craft CKS- 2240, 2250, 2050, Intertool DT-2204, GRUNTEK EL2216 T, Gardena CSI 4020-X, Wolf-Garten CSE 2240, WOLF-Garten CSE 2035 (41AZI20G650), SPARKY TV 2245, WinTech WCS-200, 2500, Mac Allister, Prorab EC 8340 P, Buran, MEGA HT 24, Titan PECP 2200, Gruntek EL 2216 T, Crosser CR-1S2000D, TATRA GARDEN MSE 240, Expert Garden YT4795 (10102409), KLEVER-1800 (YT 4764, YT4794), 2.2kW UT4794, Sadko ECS-2440, Craft CKS- 2240, 2250, SCS-2050, INTERTOOL DT-2204, Gruntek EL 2216 T 2.2kW, Mega HT 24, Intertool, Klever 1.8, 2.5kW, YT4794, Titan PECP 2200, Sadko-ECS-2240, Expert Garden YT4795, Arsenal PC-2200, Buran PC-2500, WINTECH WCS-2500, Wolf-Garten CSE 2240, CSE 2243, Sparky Tv 2245, TATRA GARDEN MSE 240, Craft CKS 2250
