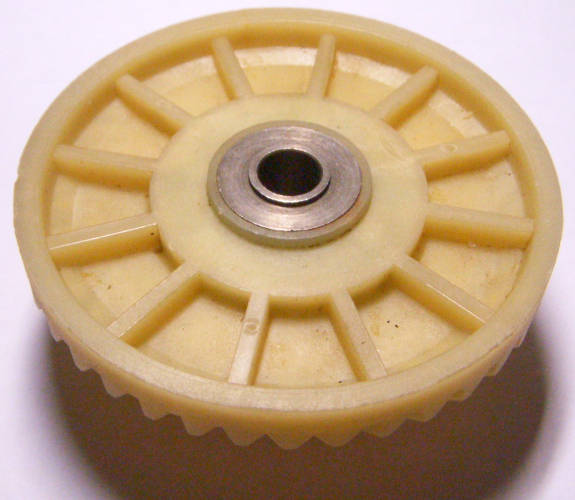

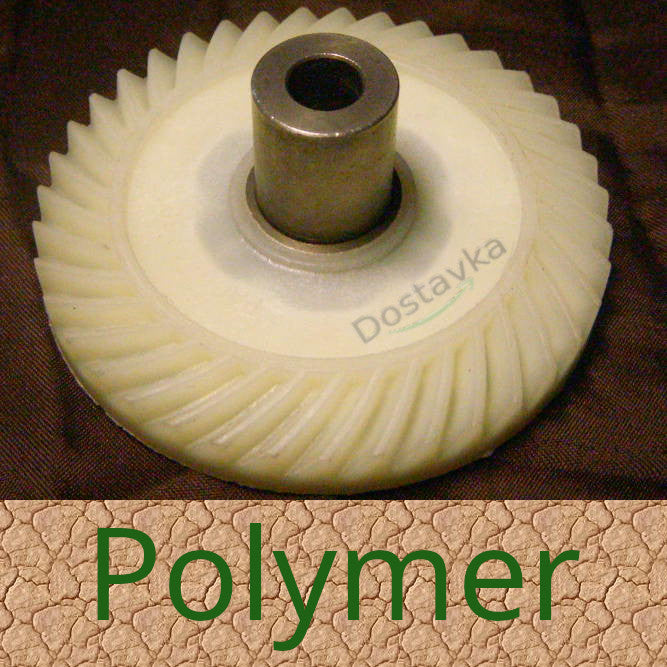

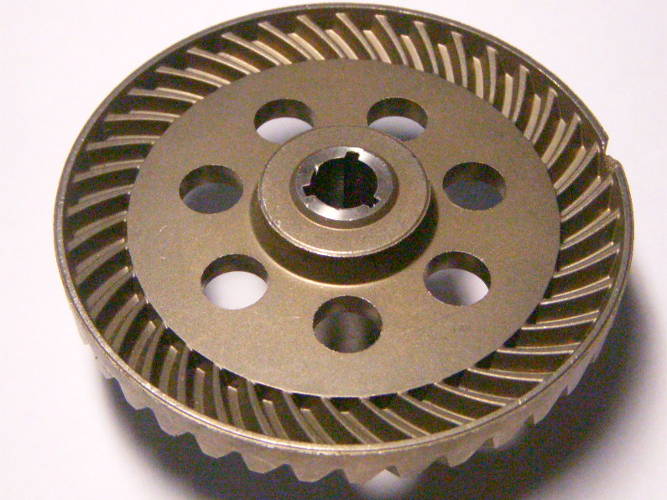

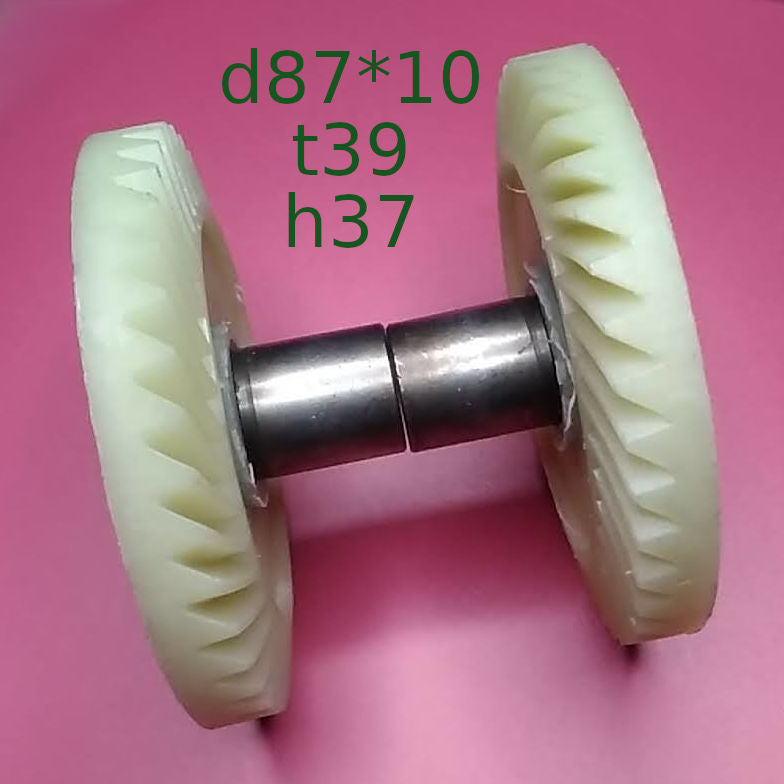

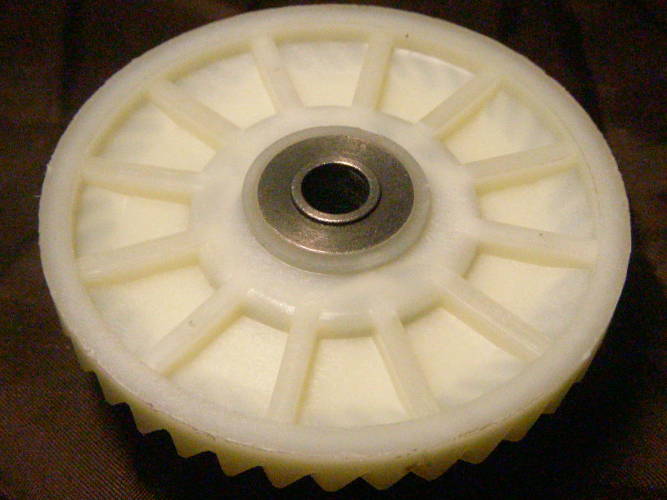

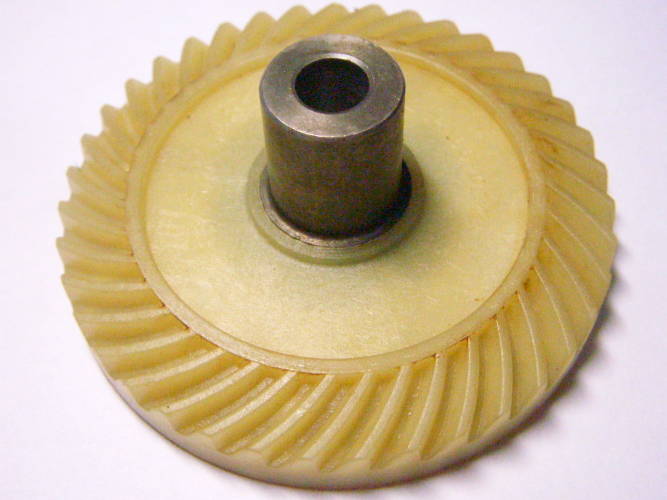

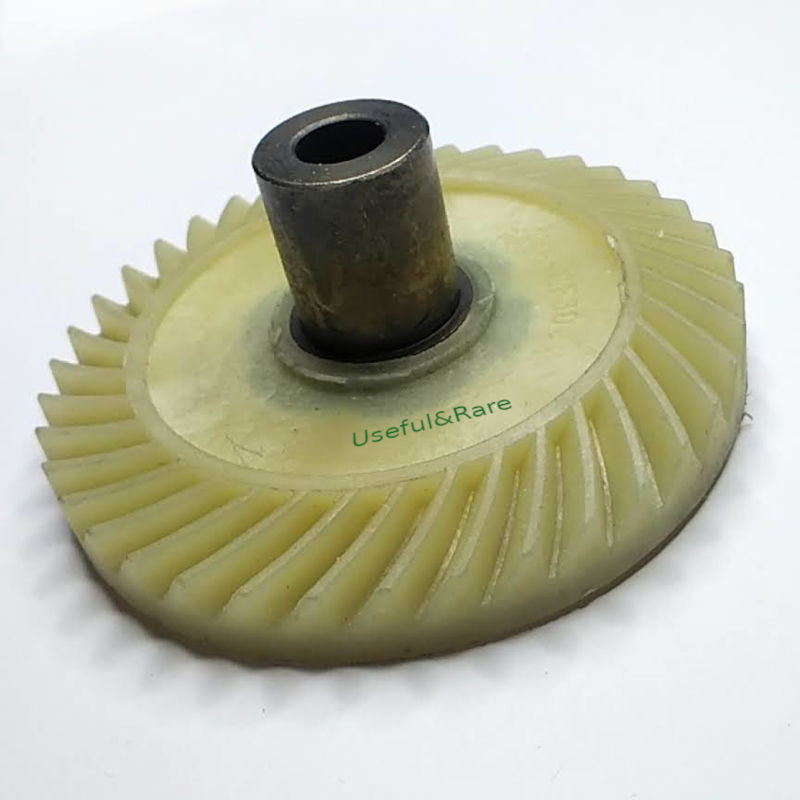

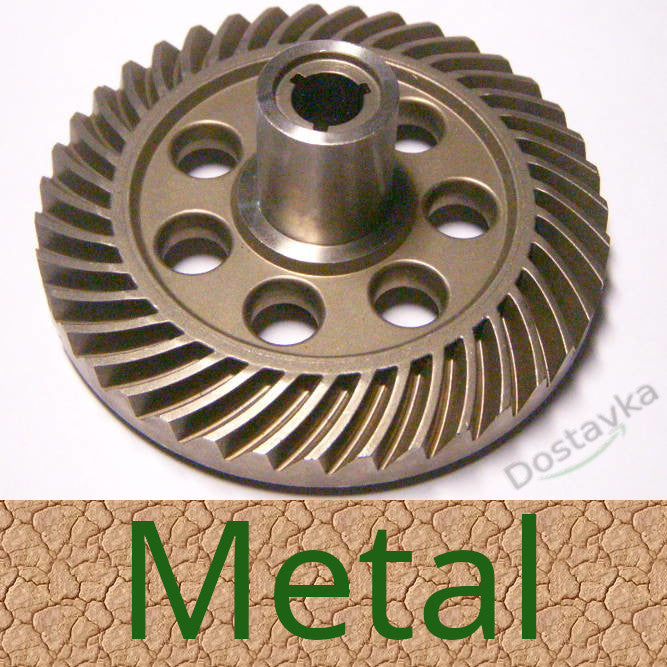

SPARKY/ Klever/ Stiga/ Odwerk chain saw driven gear d88 39 teeth

Driven gear of the chain saw with direct engine Stiga SEV 2416 Q, Odwerk BKE 4001, Patriot ES 2016 (220301510), WINTECH 2500, Klever 2.2 kW, 1800 W, 2200 W, (CODE Epicenter 10106170 YT 4764), Lider, Expert Gardian YT 4597, Ritm, Tula, Sparky, Vorskla, TATRA GARDEN MSE 240, CHAMPION 422-18 ", Titan PECP 2200, Mac Allister, TITAN PECP 2200, Mega HT 24, Arsenal PC 2200 (2.2 kW), Craft CKS- 2240, 2250, 2050, Intertool DT-2204, GRUNTEK EL2216 T, Gardena CSI 4020-X, Wolf-Garten СSE 2240, WOLF-Garten CSE 2035 (41AZI20G650), SPARKY TV 2245, WinTech WCS-200, 2500, Mac Allister, Prorab EC 8340 P, Buran, MEGA HT 24, Titan PECP 2200, Gruntek EL 2216 T, Crosser CR-1S2000D, TATRA GARDEN MSE 240, Expert Garden YT4795 (10102409), KLEVER-1800 (YT 4764, YT4794), 2.2 kW UT4794, Sadko ECS-2440, Craft CKS- 2240, 2250, SCS-2050, INTERTOOL DT-2204, Gruntek EL 2216 T 2.2 kW, Mega HT 24, Intertool, Klever 1.8, 2.5 kW, YT4794, Titan PECP 2200, Sadko-ECS-2240, Expert Garden YT4795, Arsenal PC-2200, Buran PC-2500, WINTECH WCS-2500, Wolf-Garten CSE 2240, CSE 2243, Sparky TV 2245, TATRA GARDEN MSE 240, Craft CKS 2250 diameter 87 mm; 39 teeth from top to right. Gear height 37 mm

Teeth 39
Outer diameter 87~88 mm
Gear height 36mm,
Outer diameter of tubular shaft (under spring) 20 mm
Fit on shaft (inner diameter) 10 mm
Overall height 37mm
